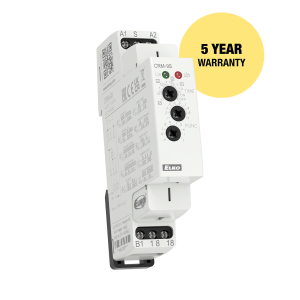

Description
- Flasher with independent adjustable switch ON and switch OFF.
- Used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, illuminated advertising, etc.
- 2 time functions:
1) Asymmetric FLASHER – ON first
2) Asymmetric FLASHER – OFF first - Function choice is done by an external jumper of terminals S-A1.
- Time scale 0.1 s – 100 days divided into 10 time ranges.
- Time range setting via rotary switch.
- Fine time setting by potentiometer.
- Multifunction red LED fl ashes or shines depending on the operating status.
Technical parameters
- Output: 1x CO, 16 A
- Housing: 1-MODULE
- Supply voltage (frequency): AC/DC 12-240 V or AC 230 V (AC 50-60 Hz)
- Time range: 0.1s – 100 days (10 ranges)
- Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
