Description

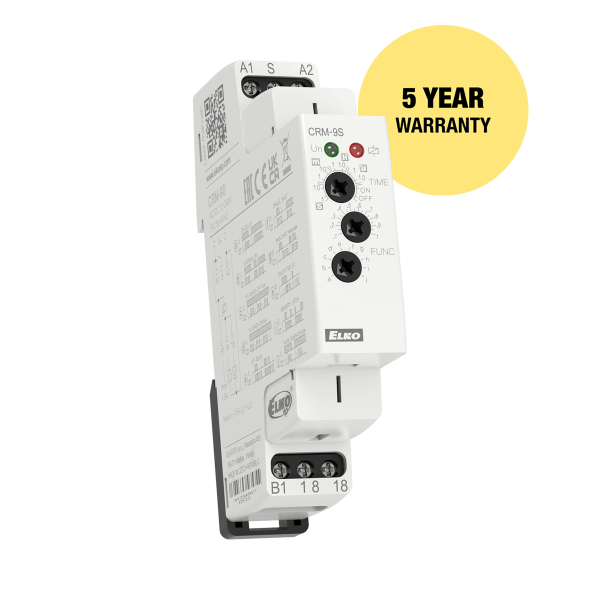

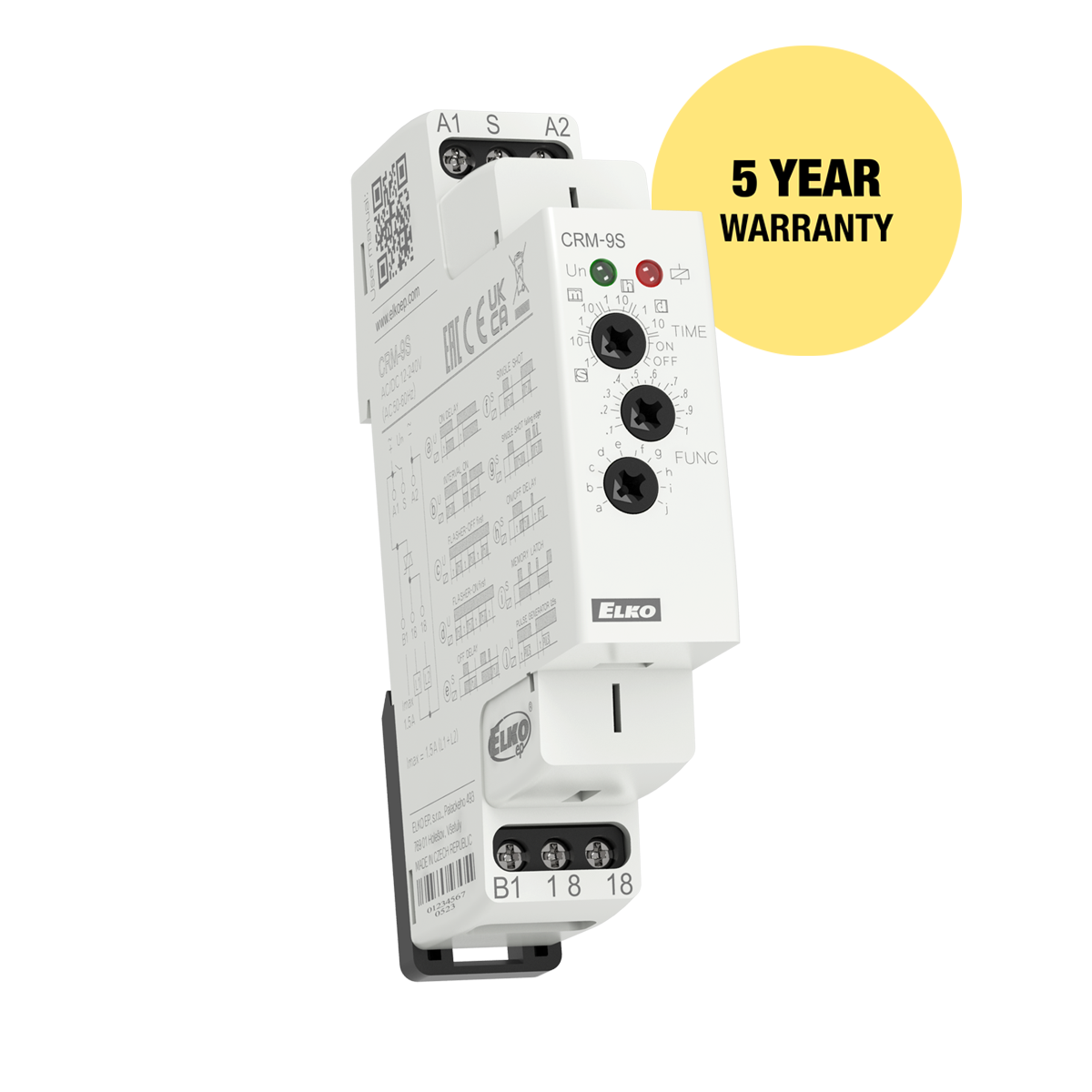

- Multifunction time relay for universal use in automation, control, and regulation or in-house installations
- Universal supply voltage AC 12 – 240 V
- Noiseless switching output
- Comfortable and well-arranged function and time-range setting by rotary switches.
- Time scale 0.1 s – 10 days divided into 10 ranges:
(0.1 s – 1 s / 1 s – 10 s / 0.1 min – 1 min / 1 min – 10 min / 0.1 hrs – 1 h / 1 h – 10 hrs / 0.1 day – 1 day / 1 day – 10 days / only ON / only OFF) - Output contact: 1× static contactless output (triac) 1.5 A, switches potential A1
- Multifunction red LED flashes or shines depending on the operating states
Technical parameters
- Supply voltage: AC 12-240 V (50-60 Hz)
- Output contact: 1x static contactless output (triac), 1.5 A
- Functions available: 10
- Mounting: DIN rail EN 60715
- Protection degree: IP40 front panel / IP20 terminals
- Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
- Weight: 55 g (1.9 oz.)
