Description
- Multifunction time relay for universal use in automation, control and regulation or in house installations.
- Possibility to select the control element for fi ne time setting:

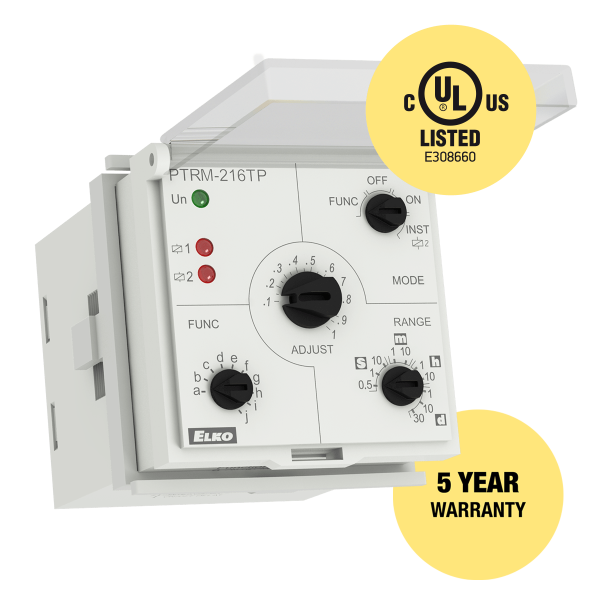

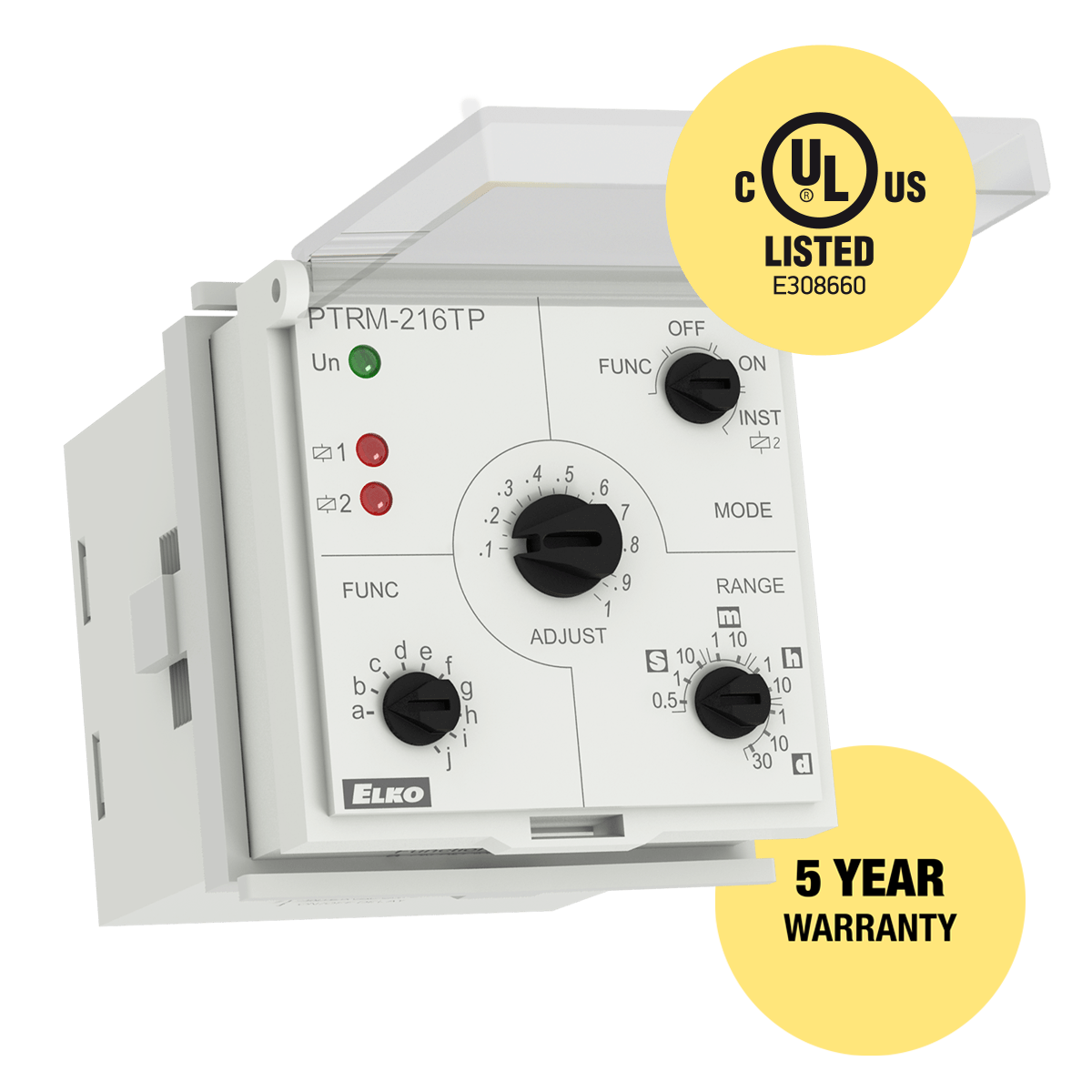

- PTRM-216TP – rotary switch, for the possibility of using a sealable cover
- All functions initiated by the supply voltage, except for the fl asher function, can use the control input to inhibit the delay (pause).
- Mode selection – according to the set function, permanently closed, permanently open, and switching of the second output contact according to the supply voltage.
- Multifunction red LED flashes or shines depending on the operating status.
Technical parameters
- Voltage range: AC/DC 12 – 240V (AC 50 – 60Hz)
- Maximum consumption: 2.5 VA / 1.5 W
- Output contact: 2x changeover / SPDT 16 A (AgNi)
- Functions available: 10
- Mounting: 11 pin octal socket
- LED indication: input – green, output – red
- Protection degree: IP40 from front panel
- Dimensions: 48 x 48 x 79 mm (1.7˝ x 1.7˝ x 3.1˝)
- Weight: 107 g (3.77 oz)
