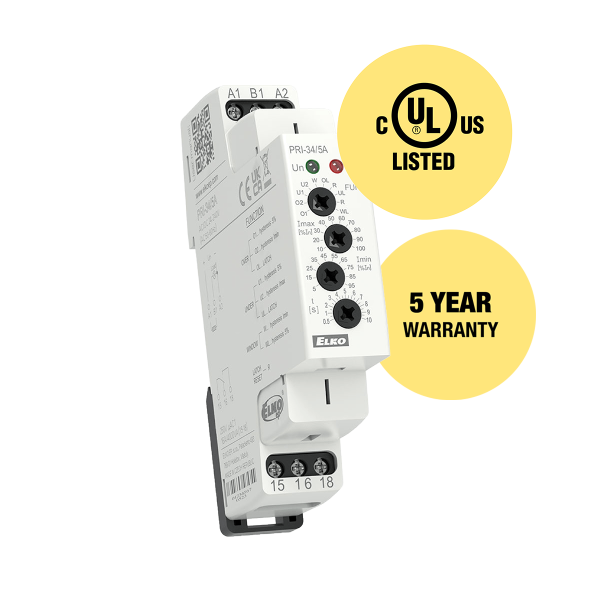

Description
- It is used to monitor the value of alternating current in, e.g.: motors, heating cables, illumination and other devices
- Power supply and monitoring circuits are not galvanically isolated
- Measures true root mean square value of the current – TRUE RMS
- Monitors current exceeding the upper current limit (Imax) and falling below the lower current limit (Imin) – according to the selected function
- Smooth adjustment of both current limits
- Adjustable TRIP delay (to eliminate short-term current spikes)
- Option to select functions with error state memory (Latch)
- Possibility to extend the current range using an external current transformer
Technical parameters
- Voltage type: AC
- Monitored levels: undercurrent, overcurrent
- Monitored range: 1 – 16 A (50-60 Hz)
- Output type: 1x CO, 16 A
- Supply voltage (frequency): AC/DC 24-240 V (AC 50-60 Hz)
- Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
