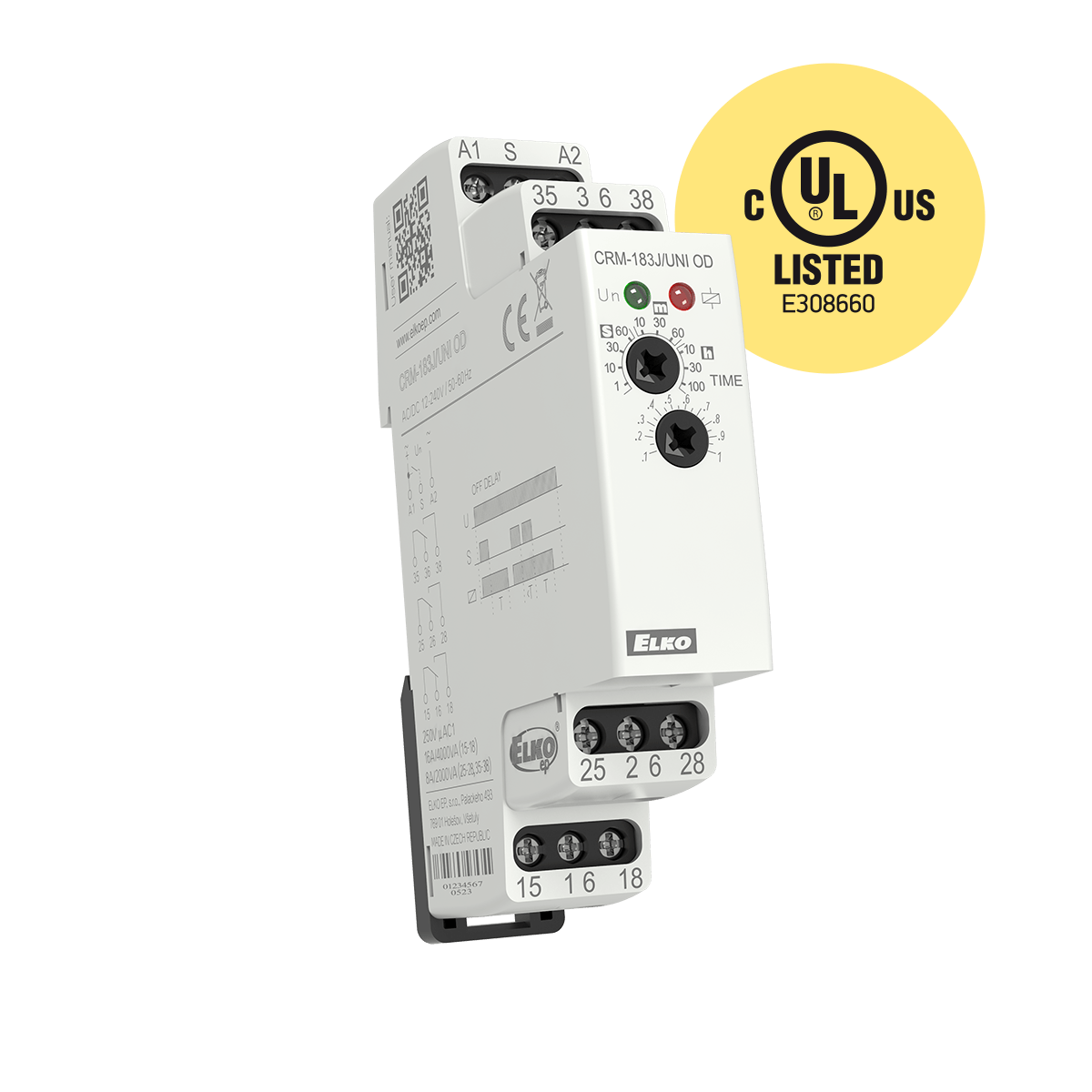

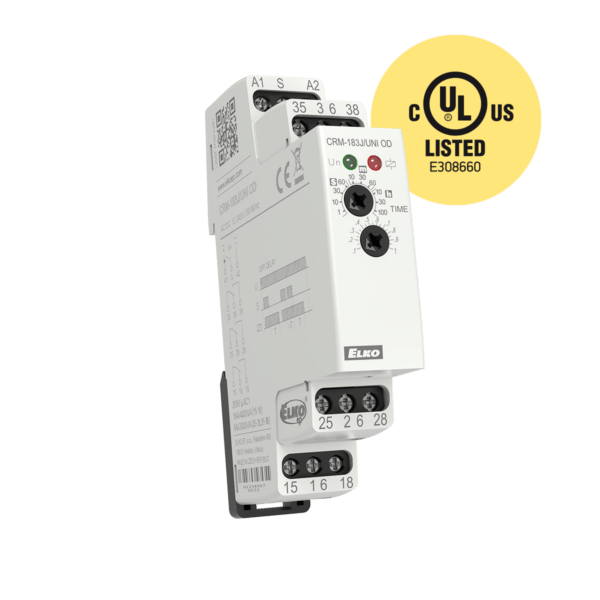

Description
- Single function time relays are suitable for applications where there is a clear function requirement in advance and are suitable for universal use in automation, control and regulation or in house installations.
- Choice of four types: ZR, ZN, BL, OD.
- All functions initiated by the supply voltage can use the control input to inhibit the ongoing delay (pause).
- Multifunction red LED flashes or shines depending on the operating status.
Technical parameters
- Output: 3x CO, 8 A
- Housing: 1-MODULE
- Supply voltage (frequency): AC/DC 12-240 V (AC 50-60 Hz)
- Time range: 0.1s – 100 hrs (10 ranges)
- Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
